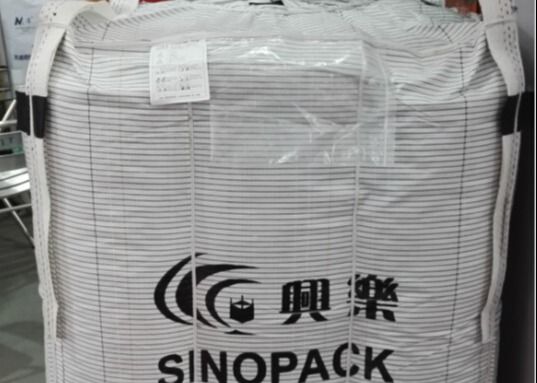

1000KG Anti Static U Panel Granular Conductive Big Bag
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Capacity | 1000KG | Safety Ratio | 5:1 |
|---|---|---|---|
| Certificate | NEL/SGS | Product Name | TYPE C Conductive Big Bag |
| Material | Anti-static PP Fabric | Color | White |
| Ability | Anti-static | Printing | Two Sides One Color |
| High Light | Granular Conductive Big Bag,1000KG conductive bag,1000KG anti static bags |
||
Product Description
TYPE C conductive big bag with printing & iris spout for granular packing
Specifications:
|
Shape |
U-panel conductive bag |
|
Capacity |
1000KG |
|
Safety factor |
5:1 |
|
Size |
37 * 37 * 45’’H |
|
Color |
White |
|
Material |
100% virgin polypropylene, 5.5OZ coated Conductive fabric |
|
Top type |
Filling spout: 16’’(D)*24’’H with 0.78'' wide tie tape closure |
|
Bottom type |
Iris discharge spout, Size: 16’’(D) * 35’’ high with rope colsure |
|
Lifting loops |
width: 2’’ side-seam loops |
|
UV stabilized |
1% UV to 3% treated |
|
Document pouch |
PE ziplock |
|
Label |
Conductive Bag TYPE C instruction label, Others as per request |
|
Printing |
Four colors at most in one side |
|
Stitching |
Plain stitching, chain stitching, overlock stitching |
|
Packing |
Packed on pallets, 20pallets/20'FCL, 44pallets/40'FCL |
|
Lead time |
25days for 1 x 20'FCL; 45days for 1 x 40'FCL |
Instructions:
Description:
1. Some bulk materials can create static energy during filling and discharging. In order to avoid this,
grounded conductive big bags are adopted for filling flammable items. With the bags earthed, the
application of the -60KV corona voltage produces a surface potential on bags of less than 5KV.
2. Conductive fibers are interwoven to fabric and webbing. To dissipate electrostatic charge by
grounding.
3. Resistance to earth is less than 10 8ohm. It contains conductive threads and tapes.
4. Type C bags can effectively remove the static electricity generated from loading and unloading the
products, preventing combustion and explosion.
Pallet package:
