Baffle TYPE D Anti Static PP Jumbo Bags Sift Proofing For Chemical Powders
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Color | Blue | Material | Anti Static Fabric |
|---|---|---|---|
| Product Name | Type-D Baffle Bag | Capacity | Up To 4000lbs |
| Safety Ratio | 5:1 | Ability | Sifting Proofing |
| Printing | With Or Without | Liner | Without |
| High Light | industrial Bulk Bags,big Bulk Bag |
||
Product Description

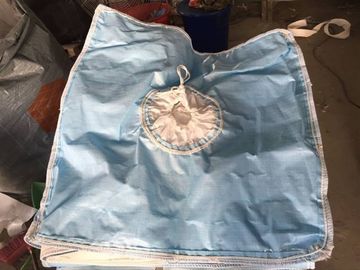

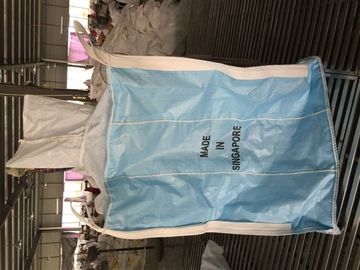

Baffle TYPE D Anti static PP jumbo bags sift proofing for chemical powders
Description:
1. TYPE D big bags with electrostatic dissipative fibres can facilitate electrostatic charge dissipation into
surroundings via corona discharge.
2. It safely dissipates static charge without the need for a ground/earth connection.
3. The breakdown voltage is not exceeding 4 KV. Type D FIBC can be used in the presence of
combustible dusts and in the presence of flammable gases or vapours.
4. This type of bags are made with CROHMIQ. Fabric is supplied by LINQ in USA. Sinopack produces
dissipative bags with anti-static coating and charge to be dissipated via corona-effect.
5. Type D bags are suitable for packing different kinds of products which needs to be packed in
Conductive bags. No grounding is necessary for this type of bag which is a specific advantage.
Specifications:
|
Shape |
U-panel baffle TYPE D bag |
|
Capacity |
Up to 4000LBS |
|
Safety factor |
5:1 |
|
Base size |
38*38’’, 40*40’’ |
|
Height |
As per request |
|
Color |
blue |
|
Material |
100% virgin polypropylene, 5OZ to 7OZ Coated |
|
Top type |
with filling spout: 14’’(D)*18’’ |
|
Bottom type |
discharge spout: 14’’(D)*18’’ with star petal or iris spout |
|
Lifting loops |
width: 2’’ / 3’’ 10’’ high side-seam loops |
|
sift proofing |
yes, with double-sided filler cord |
|
Perimeter belt |
Width: 2’’, 3’’ |
|
UV stabilized |
1% UV to 3% treated |
|
Document pouch |
PE ziplock, Envelope type |
|
Label |
Dissipative Bag TYPE D instruction label, Others as per request |
|
Printing |
Four colors at most in one side |
|
Stitching |
Plain stitching, chain stitching, overlock stitching |
|
Packing |
Packed on pallets, 20pallets/20'FCL, 44pallets/40'FCL |
|
Lead time |
25days for 1 x 20'FCL; 45days for 1 x 40'FCL |
Sif proofing & Chain+Overlock Sewing:
Baffle:
- CROHMIQ is the world's safest static protective Type D FIBC
- CROHMIQ is internationally recognized as the genuine Type D static protective bulk bag packaging technology. The proven safety record of CROHMIQ ungrounded antistatic bulk bags is unmatched. Over 20 million CROHMIQ FIBC have been safely used, including extensive use in hazardous flammable environments.
- Only CROHMIQ's patented antistatic FIBC technology provides a level of safety equal to a properly earthed conductive Type C FIBC, but without the risks of human error. For these reasons, leading global companies have converted from Type B bulk bags and Type C bulk bags to the optimum safety of CROHMIQ FIBC.
- Over 3 million CROHMIQ FIBC have been safely reused after wet or dry refurbishing. The antistatic properties of CROHMIQ Type D FIBC are permanent; therefore, its static dissipative performance does not decay with time nor wash off during wet reconditioning processes as happens with inferior Type D FIBC.
- Grounding CROHMIQ FIBC is not required, but CROHMIQ can be safely grounded for applications that demand groundable bulk bags. CROHMIQ antistatic FIBC fabric is FDA and EU food contact compliant, including 21 CFR 177.1520.
- CROHMIQ FIBC are continuously tested in a world-class testing laboratory for Type D bulk bags and other antistatic and conductive bulk bags. Over 15 years of thorough testing by the world's leading test laboratories has proven the safety of CROHMIQ Type D FIBC technology. CROHMIQ complies with all the latest National and International safety standards for static protective FIBC. Worldwide technical support by electrostatic experts is available to all users of CROHMIQ FIBC.
CROHMIQ FIBC PROVIDE SUPERIOR ELECTROSTATIC SAFETY COMPARED TO TYPE B AND TYPE C FIBC
