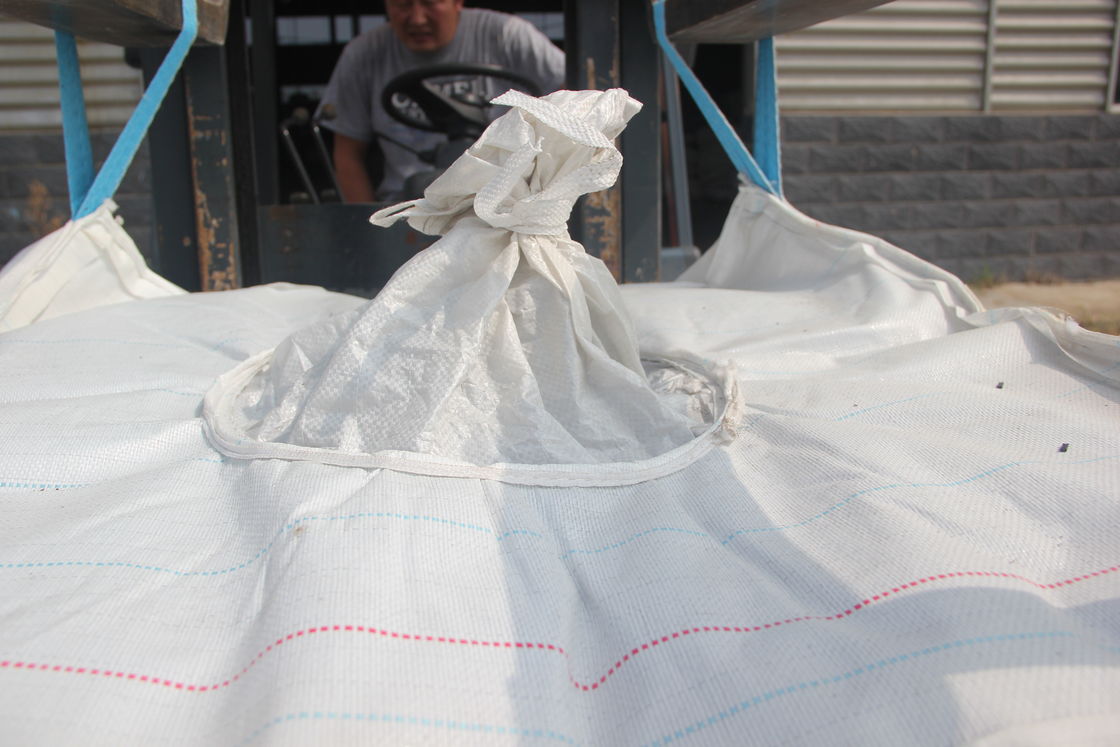

white 39x39" 4400lbs Conductive Big Bag For Flammable Material

Place of Origin China
Brand Name Sinopack
Certification SGS/CPTC
Model Number SI-1504
Minimum Order Quantity 200pcs for white color,others need to check with us
Price negotiation
Packaging Details Packed on pallets and covered
Delivery Time 25days after received your payment
Payment Terms T/T or L/C
Supply Ability 200k per month
Product Details
Product Name Type C Conductive Bag Bottom Size 39*39",41*41’’
Color White Standard NEL/SGS/CPTC
Treatment UV Treated Capacity Up To 4400lbs
Safety Ratio 5:1 Label For Safety Use Instruction
High Light

39" conductive big bag

,

4400lbs conductive big bag

,

conductive big bulk bags

Leave a Message
Product Description



Conductive Big Bag for transportation of dangerous chemical powders



Description:



1. Some bulk materials can create static energy during filling and discharging. In order to avoid this, grounded conductive big bags are adopted for filling flammable items. With the bags earthed, the application of the -60KV corona voltage produces a surface potential on bags of less than 5KV.
2. Conductive fibers are interwoven to fabric and webbing. To dissipate electrostatic charge by grounding.
3. Resistance to earth is less than 10­8ohm. It contains conductive threads and tapes.

4. Type C bags can effectively remove the static electricity generated from loading and unloading the products, preventing combustion and explosion.




Specifications:



Shape

U-panel / Four-panel conductive bag

Capacity

Up to 4400LBS

Safety factor

5:1

Base size

39*39’’,

41*41’’

Height

As per request

Color

White

Material

100% virgin polypropylene, 5OZ to 7OZ

Conductive fabric,

Coated,

Uncoated with PE liner

Top type

Full open,

skirt top,

with filling spout: 14’’(D)*18’’,

Bottom type

flat bottom,

discharge spout: 14’’(D)*18’’ with star petal or iris spout,

with flap

Lifting loops

width: 2’’

side-seam loops
color: white/yellow

Liner

PE conductive liner,

White, pink, black

Perimeter belt

Width: 1.2’’, 2’’, 3’’

UV stabilized

1% UV to 3%  treated

Document pouch

PE ziplock,

Envelope type

Label

Conductive Bag TYPE C instruction label,

Others as per request

Printing

Four colors at most in one side

Stitching

Plain stitching, chain stitching, overlock stitching

Packing

Packed on pallets,

20pallets/20'FCL,

44pallets/40'FCL

Lead time

25days for 1 x 20'FCL;

45days for 1 x 40'FCL





Application:



FIBC Bags with advantages of light weight, moisture-proof, dust-proof, no leakage, resistance to radiation, Acid corrosion, strong security, excellent performance, able to carry chemical, cement, grains, minerals and other kinds of powder, granular, quick-like material, applicable to mechanical loading, is the ideal products to reduce costs of packaging and transport.



  • Type A: No special electrostatic safety features and are just common-used bags.
  • Type B: Being not capable of generating propagating brush discharges. The wall of this FIBC exhibits a breakdown voltage of 4 kilovolt or less.
  • Type C: Conductive FIBC. Constructed from electrically conductive fabric, designed to control electrostatic charges by grounding. A standard fabric contains conductive threads or tape.
  • Type D: Anti-static FIBCs essentially refer to those bags which have anti-static or static dissipative properties without the requirement of grounding.
