Large Conductive Bulk Bags Used In Transportation Chemical Powders
| Place of Origin | China |
|---|---|
| Brand Name | Sinopack |
| Certification | SGS/CPTC |
| Model Number | SI-1504 |
| Minimum Order Quantity | 200pcs for white color,others need to check with us |
| Price | negotiation |
| Packaging Details | Packed on pallets and covered |
| Delivery Time | 25days after received your payment |
| Payment Terms | T/T or L/C |
| Supply Ability | 200k per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Type C Conductive Bag | Bottom Size | 39*39’’,41*41’’ |
|---|---|---|---|
| Color | White | Standard | NEL/SGS/CPTC |
| Treatment | UV Treated | Capacity | Up To 4400lbs |
| Safety Ratio | 5:1 | Label | For Safety Use Instruction |
| High Light | Conductive Fibc,Conductive Bulk Bags |
||
Product Description
Conductive Big Bag for transportation of dangerous chemical powders
Description:
1. Some bulk materials can create static energy during filling and discharging. In order to avoid this, grounded conductive big bags are adopted for filling flammable items. With the bags earthed, the application of the -60KV corona voltage produces a surface potential on bags of less than 5KV.
2. Conductive fibers are interwoven to fabric and webbing. To dissipate electrostatic charge by grounding.
3. Resistance to earth is less than 108ohm. It contains conductive threads and tapes.

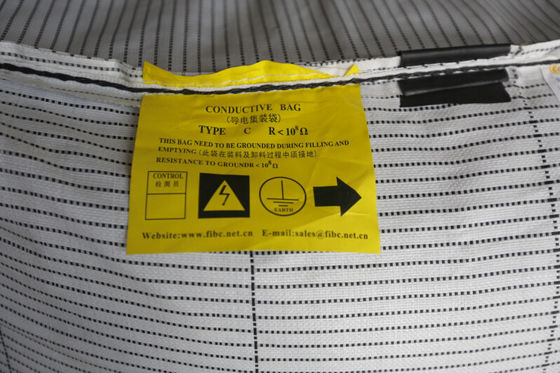

4. Type C bags can effectively remove the static electricity generated from loading and unloading the products, preventing combustion and explosion.
Specifications:
|
Shape |
U-panel / Four-panel conductive bag |
|
Capacity |
Up to 4400LBS |
|
Safety factor |
5:1 |
|
Base size |
39*39’’, 41*41’’ |
|
Height |
As per request |
|
Color |
White |
|
Material |
100% virgin polypropylene, 5OZ to 7OZ Conductive fabric, Coated, Uncoated with PE liner |
|
Top type |
Full open, skirt top, with filling spout: 14’’(D)*18’’, |
|
Bottom type |
flat bottom, discharge spout: 14’’(D)*18’’ with star petal or iris spout, with flap |
|
Lifting loops |
width: 2’’ side-seam loops |
|
Liner |
PE conductive liner, White, pink, black |
|
Perimeter belt |
Width: 1.2’’, 2’’, 3’’ |
|
UV stabilized |
1% UV to 3% treated |
|
Document pouch |
PE ziplock, Envelope type |
|
Label |
Conductive Bag TYPE C instruction label, Others as per request |
|
Printing |
Four colors at most in one side |
|
Stitching |
Plain stitching, chain stitching, overlock stitching |
|
Packing |
Packed on pallets, 20pallets/20'FCL, 44pallets/40'FCL |
|
Lead time |
25days for 1 x 20'FCL; 45days for 1 x 40'FCL |
Application:
FIBC Bags with advantages of light weight, moisture-proof, dust-proof, no leakage, resistance to radiation, Acid corrosion, strong security, excellent performance, able to carry chemical, cement, grains, minerals and other kinds of powder, granular, quick-like material, applicable to mechanical loading, is the ideal products to reduce costs of packaging and transport.
- Type A: No special electrostatic safety features and are just common-used bags.
- Type B: Being not capable of generating propagating brush discharges. The wall of this FIBC exhibits a breakdown voltage of 4 kilovolt or less.
- Type C: Conductive FIBC. Constructed from electrically conductive fabric, designed to control electrostatic charges by grounding. A standard fabric contains conductive threads or tape.
- Type D: Anti-static FIBCs essentially refer to those bags which have anti-static or static dissipative properties without the requirement of grounding.
