PP Woven pipline transportion Gravel Bulk Bag , up to 3000lbs

PP Woven pipline transportion Gravel Bulk Bag , up to 3000lbs

  • High Light

    Gravel Jumbo Bag

    ,

    Gravel Tonne Bag

  • Size
    12'' To 48''
  • Product Name
    Pipe Sack
  • Capacity
    Up To 12500lbs
  • Material
    Woven PP
  • UV Treatment
    ASTM G 154-00
  • Safety Ratio
    5:1
  • Color
    White Black
  • Printing
    With Or Without
  • Place of Origin
    CHINA
  • Brand Name
    SINOPACK
  • Certification
    SGS/CPTC
  • Model Number
    SI-150012
  • Minimum Order Quantity
    500pcs
  • Price
    negotiation
  • Packaging Details
    pallet packing or in bale
  • Delivery Time
    25-35days
  • Supply Ability
    200k per month

PP Woven pipline transportion Gravel Bulk Bag , up to 3000lbs

builder pipline bag, weight bag,  pp woven for oil industry up to 12500lbs



Description:

We name this kind of bag builder pipeline bag, weight bag, pipe sack. The material is woven PP. The size is suitable for the oil pipe of 12'', 16'', 18'', 20'', 24'', 26'', 30'', 34'', 36'', 42'', 48''. Fabric used is from 8oz to 13oz heavy with the UV treatment of 70% strength after 500 hours holding the capacity from 1600lbs to 12500lbs.

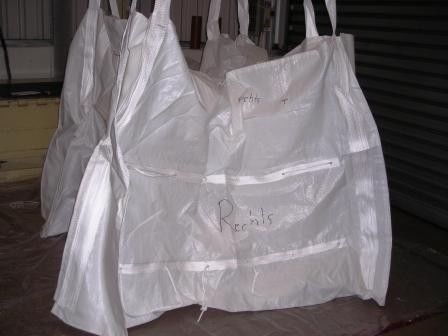

Photos:



PP Woven pipline transportion Gravel Bulk Bag , up to 3000lbs 0PP Woven pipline transportion Gravel Bulk Bag , up to 3000lbs 1

PP Woven pipline transportion Gravel Bulk Bag , up to 3000lbs 2PP Woven pipline transportion Gravel Bulk Bag , up to 3000lbs 3



Constructions:
Front:   200g/m² uncoated ( 400g/m² )
Back :     200g/m² uncoated ( 400g/m² )
U-panel:             200g/m² uncoated ( 400g/m² ) !
100mm wide belt:    around 50m
50mm wide belt:       around 30m
Rope dia 9mm: 12 pieces 1,75m = 21m
Duffle top:            75g/m²+coating fabric and 1,2m wide rope x 7,4m
Drawstring closure:    dia 5mm Length 8m
