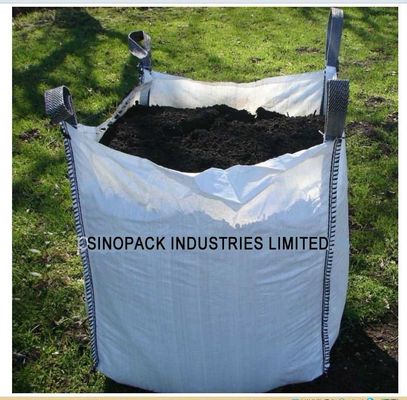

Standard U-panel 1.5 ton Big Bag FIBC with open top for construction

Place of Origin China
Brand Name Sinopack
Certification SGS/CPTC
Model Number SI-1505U
Minimum Order Quantity 200pcs for white color,others need to check with us
Price negotiation
Packaging Details Packed on pallets and covered
Delivery Time 25days after received your payment
Payment Terms T/T or L/C
Supply Ability 200k per month
Product Details
Product Name U Panel Bag Treatment UV Treated
Color White Standard SGS/CPTC
Capacity Up To 3300lbs Safety Ratio 5:1
Top Open Top Bottom Plain
High Light

big bag sack

,

Flexible Intermediate Bulk Containers

Leave a Message
Product Description

Standard U-panel 1.5 ton Big Bag FIBC with open top 100% virgin PP for construction



 Specifications:





U-panel



1) Size: 35 * 35 * 47''

2) Material: 100% new PP woven, white uncoated

                   5OZ, 5.5OZ, 6OZ, 6.5OZ

3) Capacity: 1100LBS - 3300LBS

4) SF: 5:1

5) Top: open top

6) Bottom: Plain bottom

7) Lifting loops: 4pcs corner loops, 10'' high

                         2'' / 3'' wide

                         color: white, blue, green, black

8) UV stabilized: 1% - 3% treated

9) Document pouch: PE ziploack or envelope

10) Label: as per request

11) Printing: 4colors one side

12) Packing: 200pcs/pallet; 4000pcs/20'FCL; 8800pcs/40'FCL

13) Lead time: 25days for 1x20'FCL; 45days for 1x40'FCL

14) Usage: for building construction to store and trasnport sand, cement, gravel etc.







Description:



1. The popular Four-Panel bulk bag is our original polypropylene design and has become the industry standard by which others are judged. The versatile, cost-effective four-panel construction is excellent for a variety of applications and is available custom designed or from our in-stock selection. The U-Panel variation consists of two side panels attached to a ‘u-shaped’ single piece ‘side-bottom-side’ unit.

2. The capacity of this type:
  Volume: Two to 120 cubic feet.
  Up to: 3300 lbs.

3. The four-panel and u-panel construction has unique hems on all side panels, reducing strength loss and sifting from sewing lines. Fabric edges are turned to the outside to reduce potential contamination.



4. FIBC bags fill up to 3300LBS and more attention should be paid during operation. The instructions are as follows.



Standard U-panel 1.5 ton Big Bag FIBC with open top for construction 0




Application:



FIBC Bags with advantages of light weight, moisture-proof, dust-proof, no leakage, resistance to radiation, Acid corrosion, strong security, excellent performance, able to carry chemical, cement, grains, minerals and other kinds of powder, granular, quick-like material, applicable to mechanical loading, is the ideal products to reduce costs of packaging and transport.



  • Type A: No special electrostatic safety features and are just common-used bags.
  • Type B: Being not capable of generating propagating brush discharges. The wall of this FIBC exhibits a breakdown voltage of 4 kilovolt or less.
  • Type C: Conductive FIBC. Constructed from electrically conductive fabric, designed to control electrostatic charges by grounding. A standard fabric contains conductive threads or tape.
  • Type D: Anti-static FIBCs essentially refer to those bags which have anti-static or static dissipative properties without the requirement of grounding.
