Transportation grains / granules baffle big bag , Volume 20 to 115 cubic feet

Place of Origin CHINA
Brand Name SINOPACK
Certification SGS/CPTC
Model Number SI-150037
Minimum Order Quantity 200pcs for white color,others need to check with us
Price negotiation
Packaging Details on pallet or in bales
Delivery Time 25-35days
Supply Ability 100k per month
Product Details
UV Treatment ASTM G 154-00 Capacity 3300lbs
Safety Ratio 5:1 Product Name 4-panel Baffle Big Bag
Color White Material 100% Virgin PP
Printing Without
High Light

industrial Big Bags

,

big Jumbo Bags

Leave a Message
Product Description

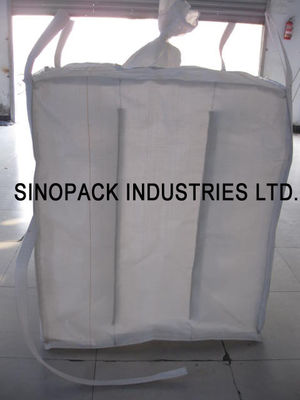

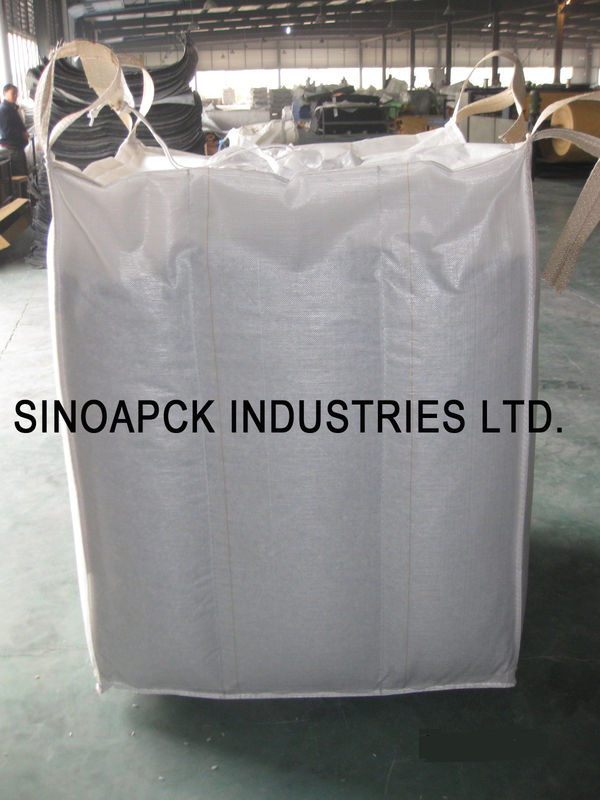

4-Panel baffle big bag for transportation for grains, granules





Description:



1. This cube bulk bag is designed to stay square after filling for greatest efficiency of shipping and

 warehouse storage space, yet compacts down to a small fraction of its filled size when empty. This

design is extremely stable, making it very stackable, and is ideal for products with low bulk densities.

2. The capacity of this type
   Volume: 20 to 115 cubic feet.
   Up to: 3300 lbs.

3. The bulk bag is an internally baffled FIBC (flexible intermediate bulk container) with spread strap lift

loop design, and can contain 25% to 30% more than a conventional super sack of the same height. The

unique double coated baffle fabrication prevents contamination and is the cleanest in the industry.



A) 41”x 41”
B) 43" x 43"
C) 40" x 48"
D) 48" x 48"



 Specifications:



Shape

4-panel baffle bag

Capacity

3300LBS

Safety factor

5:1

Base size

42'' * 42''

Height as per request

Color

white

Material

100% virgin white polypropylene,

5.3OZ Uncoated

Top type

Filling spout: 14’’(D)*18’’

Bottom type

Discharge spout: 14’’(D)*18’’ with star petal

Lifting loops

width: 2’’

10’’ high

side-seam loops
color: white

Baffle

4pcs, sewn on each corner

Sift-proofing

no

Perimeter belt

no

UV stabilized

1% UV to 3%  treated

Document pouch

PE ziplock

Label

As per request

Printing

Four colors at most in one side

Stitching

Plain stitching

Packing

Packed on pallets,

20pallets/20'FCL,

44pallets/40'FCL

Lead time

25days for 1 x 20'FCL;

45days for 1 x 40'FCL



Baffle layout:



Transportation grains / granules baffle big bag , Volume 20 to 115 cubic feet 0





Baffle sewing thread:



Transportation grains / granules baffle big bag , Volume 20 to 115 cubic feet 1



PE ziploack document pouch:



Transportation grains / granules baffle big bag , Volume 20 to 115 cubic feet 2



Pallet Packing:



Transportation grains / granules baffle big bag , Volume 20 to 115 cubic feet 3
