1320 Lbs Capacity Conductive Big Bag Form - Fitted / Bottom Sealed Liner

Place of Origin CHINA
Brand Name SINOPACK
Certification NEL/SGS
Model Number SI-1500410S
Minimum Order Quantity 200pcs
Price negotiation
Packaging Details on pallets or in bales
Delivery Time 25-35days
Supply Ability 100k per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Capacity 1320lbs Safety Ratio 5:1
Certificate NEL/SGS Product Name TYPE C Big Bag
Material Anti-static PP Fabric Color White
Ability Anti-static Liner Form-fitted, Bottom Sealed
Highlight

Conductive Bulk Bags

,

transport big bag

Leave a Message
Product Description

U-panel TYPE C conductive big bags with liner and bottom flap for pills packaging



Specifications:



Shape

U-panel TYPE C conductive bag

Capacity

1320LBS

Safety factor

5:1

Size

34 * 34 * 31’’H

Color

White

Material

100% virgin polypropylene, 5.5OZ coated

Conductive fabric

Top type

Filling spout: 22’’(D)* 21’’high with 0.78'' wide tie tape closure

Bottom type

Iris discharge spout,

Size: 14’’(D) * 16’’ high with tie tape colsure

Lifting loops

width: 2’’

side-seam loops
color: white/yellow conductive webbing

Liner

form-fitted,

bottom sealed,

food grade,

anti-static transparent,

90micron thickness

UV stabilized

1% UV to 3%  treated

Document pouch

PE ziplock

Label

Conductive Bag TYPE C instruction label,

Others as per request

Printing

4 sides, 4 colors at most in one side

Stitching

Double plain stitching, chain stitching, overlock stitching

Packing

Packed on pallets,

20pallets/20'FCL,

44pallets/40'FCL

Lead time

25days for 1 x 20'FCL;

45days for 1 x 40'FCL



Bag details:

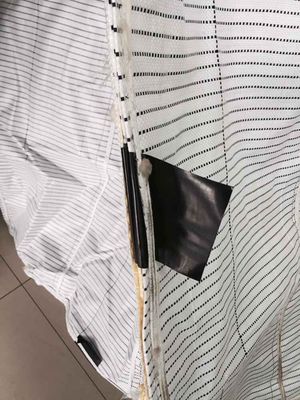

1. Corner conductive yellow webbing

 1320 Lbs Capacity Conductive Big Bag Form - Fitted / Bottom Sealed Liner 0



2. Iris discharge spout

1320 Lbs Capacity Conductive Big Bag Form - Fitted / Bottom Sealed Liner 1



3. Liner bottom sealed

1320 Lbs Capacity Conductive Big Bag Form - Fitted / Bottom Sealed Liner 2



4. Bottom flap

1320 Lbs Capacity Conductive Big Bag Form - Fitted / Bottom Sealed Liner 3



5. Pallet packing

1320 Lbs Capacity Conductive Big Bag Form - Fitted / Bottom Sealed Liner 4



Description:



1. Some bulk materials can create static energy during filling and discharging. In order to avoid this,

grounded conductive big bags are adopted for filling flammable items. With the bags earthed, the

application of the -60KV corona voltage produces a surface potential on bags of less than 5KV.


2. Conductive fibers are interwoven to fabric and webbing. To dissipate electrostatic charge by

grounding.


3. Resistance to earth is less than 108ohm. It contains conductive threads and tapes.



4. Type C bags can effectively remove the static electricity generated from loading and unloading the

products, preventing combustion and explosion.





Instructions:

1320 Lbs Capacity Conductive Big Bag Form - Fitted / Bottom Sealed Liner 5

1320 Lbs Capacity Conductive Big Bag Form - Fitted / Bottom Sealed Liner 6



Competive Advantages:


1. The most advanced gravure printing machine and best skilled workers.
2. Most competitive price, high-quality, timely delivery and good serivce to our customers
3. 20 years experiences
4. Quality control system: ISO9001-2008
5. Production capacity: 100k/month



Our Services:



1. we have 20 years experiences.

2. we can promise you a short lead time .

3. we are the manufacturer and offer the first hand price.

4. we have 4 production line for the big bags.

5. we have experienced inspector for every production.

6. we are 24 hours online service.
