U-panel 1000kg UN big bag , dangerous goods transportation UN FIBC
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| With Or No | Capacity | 1000kg | |
|---|---|---|---|
| Safety Ratio | 6:1 | UV Treatment | Standard ASTM G 154-00 |
| Product Name | Big Bag With UN Certification | Material | 100% Virgin PP |
| Certificate | SGS/CPTC | Color | White |
| Highlight | UN certified bulk bags,UN FIBC |
||
Product Description

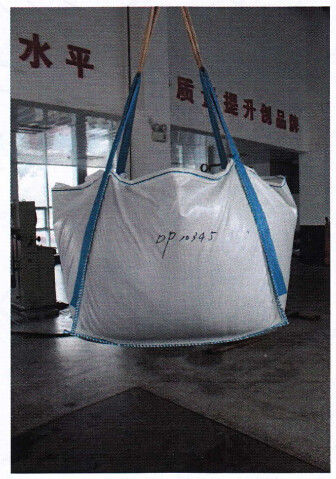

U-panel 1000kg UN big bag with certification, FIBC for transportation of dangerous goods
Description:
1. UN certified big bags are available in different shapes and sizes which can be customized.
2. This is a special line of bulk bags dedicated to the transportation of dangerous materials.
3. They are made in accordance with the United Nations Recommendations on the Transportation
of Dangerous Materials, more commonly known as the for road (ADR), railway (RID) and marine
transportation (IMDG - Code).
4. They are large and designed for packaging category II and III materials defined in chapter 9 of
the Orange Book Typical product - poisons, corrosives.
5. Types offered:
13H1: PP FIBC uncoated without liner
13H2: PP FIBC coated without liner
13H3: PP FIBC uncoated with liner C
13H4: PP FIBC coated with liner
PP FIBC single-layer UN FIBC, it has identical parameters as the double-layer FIBC.
6. Safe working load (SWL) is up to 3300LBS, with a safety factor (SF) of 6: 1.
7. UN FIBC are produced with flat, outlet, or conical bottoms that simplify the emptying process,
especially with materials that don't flow so freely.
Specifications:
|
Item |
UN certified Big Bag |
|
Shape |
U-panel big bag |
|
Capacity |
1000kg |
|
Safety factor |
6:1 |
|
Base size |
35*35’’ |
|
Height |
29'' high |
|
Color |
White |
|
Material |
100% virgin polypropylene, 7OZ, Coated |
|
Top type |
Open top |
|
Bottom type |
Discharge spout: 14 (D) * 19'' |
|
Lifting loops |
width: 3’’ 22’’ high side-seam loops |
|
Liner |
None |
|
Perimeter belt |
None |
|
UV stabilized |
1% UV to 3% treated |
|
Document pouch |
PE ziplock |
|
Label |
As per request |
|
Printing |
Four colors at most in one side |
|
Stitching |
Plain stitching + chain stitching + overlock stitching |
|
Packing |
Packed on pallets, 20pallets/20'FCL, 44pallets/40'FCL |
|
Lead time |
25days for 1 x 20'FCL; 45days for 1 x 40'FCL |
